Nightforce Optics, NX8 1-8x24mm F1, FC-DMx Reticle
$2,049.99
Service Booking
Backorder
ESTIMATED DELIVERY | 4-6 WEEKS
SKU
NF-C654
We will notify you when this item becomes available.
ATF & PROP 65 WARNINGS | All ATF regulations apply. Each state's laws dictate what can or cannot be possessed in its own state. Some counties within each state hold different laws as well. Please contact your local ATF field office with any ATF related questions or concerns you may have. LINE49 LLC reserves the right to use discretion when selling to each individual state. | Prop. 65 Warning for CA Residents WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to: http://www.P65Warnings.ca.gov

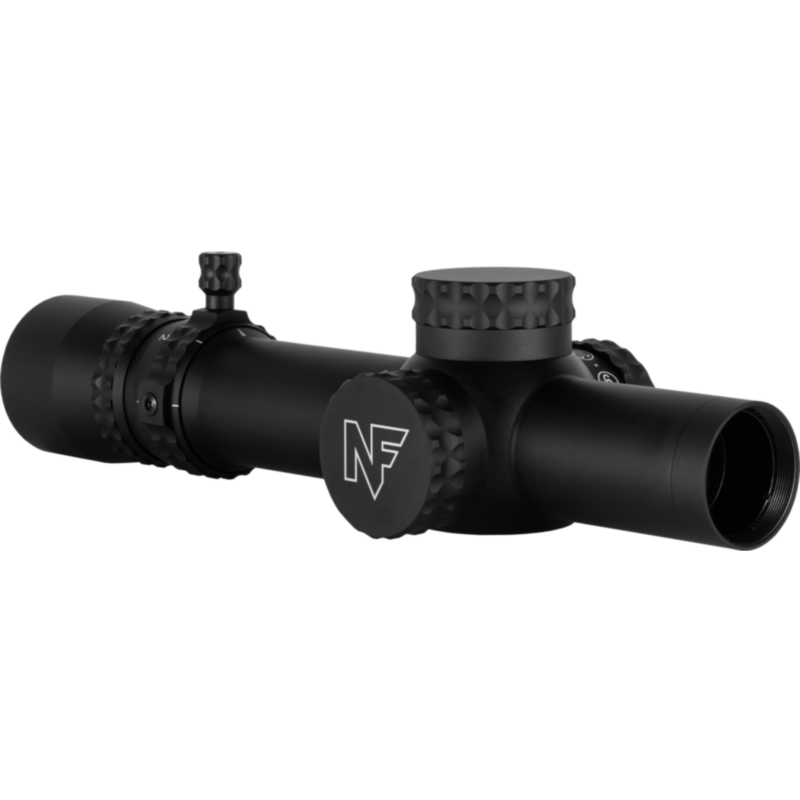

NX8 – 1-8x24mm F1 Capped
At only 8.75“ in length and 17 ounces, the NX8™ 1-8X24 F1 is a powerful, compact, and lightweight riflescope. New for 2022, The NX8™ 1-8X24 F1 is now available with a capped elevation turret to ensure the elevation adjustment is not accidentally moved during transit or rough handling.
The NX8™ 1-8X24 F1 with capped elevation adjustment also includes our new FC-DMx reticle, previously only available in the ATACR 1-8×24 F1. The decreased center dot size (.2MRAD/.7MOA) allows for a more precise aiming point when at high magnification and the large (4 MRAD) segmented circle allows for a clear view of the target. Nightforce has maintained the daylight bright illumination that allows for use in any conditions at 1x or high magnification.
The NX8™ 1-8X24 F1 with a capped elevation adjustment and FC-DMx reticle is available in both Dark Earth and Black to give you color options when kitting out your favorite rifle.
FC-DMx
Nightforce has maintained the daylight bright illumination that allows for use in any conditions at 1x or high magnification. The FC-DMx segmented circle has been increased in diameter from 2MRAD to 4MRAD and made thinner to maintain the same illuminated area. This open center area allows the user a clear view of the target to make fast, unobstructed shoot/no-shoot decisions. The 0.2MRAD (0.7MOA) center dot provides a precise aiming point when at high magnification. A 1MRAD resolution aiming grid allows for simultaneous holds (elevation and wind) to 10MRAD of elevation. The line labels are placed on both the left and right for fast acquisition and are located to the outside for a clear view of the target within the grid. The unobstructed view of the target, daylight visible illumination, and intuitive labeling of the FC-DMx provide the user with increased capability for both close and far targets.
SPECS
| Magnification Range | 1-8x |
|---|---|
| Focal Plane | First Focal Plane (F1/FFP) |
| Body Tube Diameter | 30mm |
| Overall Length | 8.7 in/222 mm |
| Mounting Length | 5.7 in/144 mm |
| Weight | 17.3oz/490g |
| Click Value | .2 MRAD |
| Internal Adjustment Range | E: 30 MRAD W: 30 MRAD |
| Parallax Adjustment | Fixed @ 125 m |
| Eye Relief | 3.7 in/95 mm |
| Field of View @ 100 yd or m | 1x: 106.0 ft/35.3 m 8x: 13.2 ft/4.4 m |
| Exit Pupil | 1x: 7.9 mm 8x: 3.0 mm |
| Illumination | Daylight visible, Externally adjustable |
| Elevation Feature | Capped, finger-adjustable |
| Power Throw Lever | Standard |
